Onshore Drilling Rigs

From 750 HP thru 6000 HP.

Desert Fast Moving

Automated Drilling Technology.

Train-type polar Rig

Leading Manufacturers: BOMCO, SJPETRO

​

​

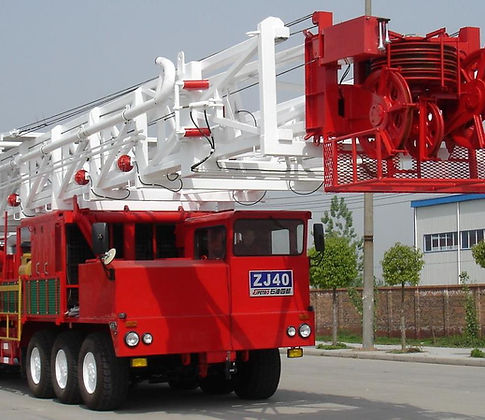

Onshore workover Rig.

ranges from 350 HP thru 1000 HP.

Truck-mounted, Trailer-mounted.

Leading Manufacturer: SJPETRO, BOMCO

​

​

​

Suitable for various conventional oil and gas well acidizing fracturing stimulation operations and tight oil and gas wells, shale gas wells fracturing development operations. It can be operated on a single machine or on line.

​

Fracturing axle load and profile dimensions meet national requirements for vehicle exterior contour and quality limits, with small turning radius and large traction, which can be used in complex road conditions such as hilly mountainous areas; the vehicle adopts finite element analysis technology to systematically optimize the design of the whole structural part of the vehicle, effectively reducing the weight and improving the driving performance of the vehicle.; long-stroke, low-shrinkage fracturing pump, effectively extend the life of the fluid end.

​

​

Standard Drilling line

Typical construction:

6×19S-IWRC

6×21S-IWRC

6×26WS-IWRC .

Wire rope for oil drilling: stable structure, excellent anti-abrasion, anti-extrusion.

 ​

New Style Drilling line.​

Typical construction:

6×K26WS-IWRC,

6×K19S-IWRC(FC)

6×K25F-IWRC(FC).

6×K31WS-IWRC,

6×K36WS-IWRC(FC)

6×K41WS-IWRC(FC).

This kind of wire rope has higher tensile strength and better performance; smooth surface and larger contact area to reduce abrasion between pulleys and reel, showing excellent abrasion resistance and anti-crush, thus the ropes can work in rigorous environments.

​

​

Product Description:

QPI series cementing and fracturing pump is a high-tech product independently developed by BOMCO for the exploitation of unconventional oil and gas resources, such as shale gas, coal bed methane. The product meets the requirements of SY/T 7086 standard, and has the characteristics of long stroke, low pumping and high reliability, which satisfies the localization replacement requirements of cementing and fracturing pumps.

Performance Features

The design of "long stroke and low impulse" is adopted in achieving superior comprehensive performance.

The unique positive-skewed crank-link mechanism reduces the risk of burns on the crosshead and surface of copper guide plate.

The bearing bush with large contact surface is adopted to improve the working reliability of the bearing bush.

​

The design life of main bearing and gear is increased to 3000 and 10000 hours respectively, and the overhaul cycle of fracturing pump is greatly extended.

The service life of vulnerable parts is greatly extended with the new long-life pump valve case.

​

Drilling pumps of series F enjoy the right to use the API Spec 7K Monogram (certificate number: API 7K 0009), and as important equipment for oil and gas exploration and development, they can be used to deliver high-pressure drilling fluid to the bottom of the well to cool the drill bit and carry cuttings. Currently, triplex drilling pumps with a horsepower from 500 to 2200 are available.

Performance Features:

The power end eliminates axial force by adopting herringbone gear drive.

Alloy steel crankshaft.

Replaceable crosshead guide plate.

The frame is welded with steel plate and has high strength, good rigidity and light weight.

The packing of the pony rod is a double-layer sealing structure with good sealing.

The power end is lubricated by combining forced lubrication and splash lubrication.

Pump valves at the hydraulic end are arranged in “I” or “L” type.

Three cylinders of the same pump can be exchanged.

​

Product Description:

As high-tech products independently developed by BOMCO, quintuple drilling pumps of QDP series can meet requirements of API 7K, have characteristics of small pressure fluctuation, stable operation and long life of vulnerable parts and can be used for drilling operations such as high-pressure jet drilling, horizontal wells with large displacement, deep wells, ultra-deep wells and offshore platforms.

​

1600 HP, 2200HP, 3000HP

Performance Features:

The theoretical displacement is about one third of that of the triplex pump, and the pulsation dampener for exhaust can be canceled.

Spherical hinges are used to connect the crosshead and the pony rod to solve the problem of eccentric wear between the piston and the cylinder sleeve.

The service life of vulnerable parts at the hydraulic end is long.

The pump unit adopts modular design and is compact in structure and suitable for operation environments such as offshore drilling platforms.

With gear transmission, the overall energy efficiency of the pump unit is improved by about 7%.

​

Power Catwalk

Iron Roughneck

Iron Derrickman

Power Slip

I-Driller Integrated Control System adopts industrial Ethernet to integrate drilling equipment and string handling tools into a ring redundant coupling communication system network. that can realize remote integrated control, information sharing, fault diagnosis and data management of string operation, electrical control, top drive, instrument, video, and other system through integrated seat man-machine interface.

​

BOMCO made Coiled Tubing Unit.

Truck-mounted, Skid-mounted

Trailer Mounted.

Size of Drum: 1-1/2", 2" and 2-3/8".

Pull max up to 140K lb.

​

​

Snubbing unit is an advanced equipment used for underbalanced drilling, workover, completion and oil testing under the condition without well killing and blowout.

Max Lift (ton): 68, 102, 113, 154 tons.

​

​

​

Dual Engine & Dual Pump Cementing unit.

Single Engine and Single Pump Cementing unit.

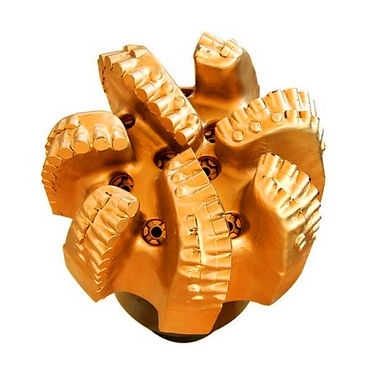

Product description

Suitable for complex and difficult formation drilling.

Performance characteristics

1.Use PDC to scrape the rock as the main method, and use cone to impact rock as the auxiliary method, it has cutting advantages in drilling complex or hard formation.

2.Better dynamic drilling and steering control performance to reduce drilling torque and torsional vibration.

3.The hybrid Drill Bit is highly aggressive, taking into account rock breaking performance and stable drilling at the same time.

4.Lower requirements for axial vibration and drilling pressure, suitable for higher drilling speed

5.Hybrid drill bit is more suitable for directional and deviation correction drilling conditions compared with PDC bit.

​

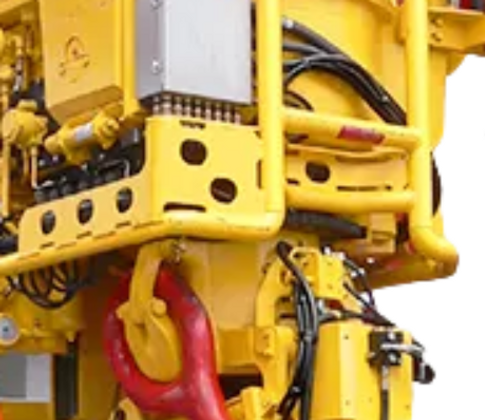

Top Drive System (TDS) range 350 metric ton, 500 metric ton, and 750 metric ton.

​

Top Drive-Casing Running Tools

External clamping for tubular from 4-1./2" thru 8-5/8".

Internal bracing for tubular from 9-5/8" thru 20".

​

​

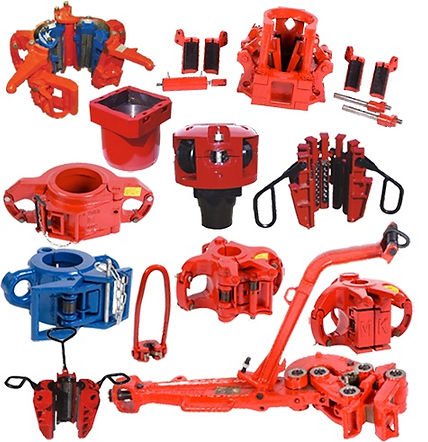

Complete line of Tubular handling tools, manufactured by Rutong, Teda, and Rushi.

Slips

Pneumatic slips

Hydraulic Slips

Pneumatic-Hydraulic Slips

Elevator

Hydraulic Elevator

Spider elevator

Pneumatic spider

Safety clamp (Type C, T, and MP)

Power Catwalk

Manual Tong (Type B, SB, HT, AAX, WWB, WWC, Type C)

Power Tong for casing, tubing, and Sucker Rod.

Safety Spinning Wrench

Flush-mounted Slips

Casing Running Tool (CRT)

Iron Roghneck

Kelly Spinner

Master Bushing

Roller Bushing.

​

​

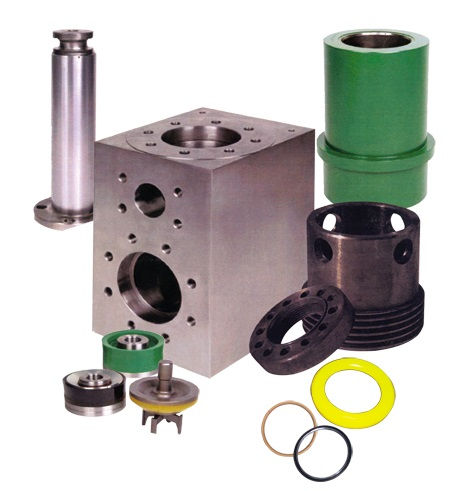

Complete line of Mud pump fluid end parts.

Liners

Ceramic line

Piston

Piston Rod

Valve & Seat

Valve Cover

Valve & Seat pulling tools

Pony Rod

Rod Clamp

Fluid end module & accessories.

Discharge manifold

Pulsation Dampener & accessories

​

​

Acclaimed as one of the most durable of all resilient-seated butterfly valves in the industry, this valve excels in a wide variety of applications. Cast in both wafer and tapped-lug patterns in a wide variety of material choices, DEMCO NE-C butterfly valve features a one-piece body for reduced weight and increased strength.

​

The DEMCO NE-D butterfly valve, sizes 2″ through 12″ (50 mm through 300 mm), is a short-neck valve with body notches to fit popular lightweight flange patterns, making it ideal for bulk material handling and the transportation industry. Valves also will center in ASME Class 125/150 flanges.

​

The DEMCO NE-I butterfly valve, size 2″ through 12″ (50 mm through 300 mm), is ideal for a wide range of applications in many industries, including food and beverage utilities and process flow lines. Its short neck design is offered in a wide variety of body materials. The valves are designed for installation between ASME Class 125/150 flanges

.

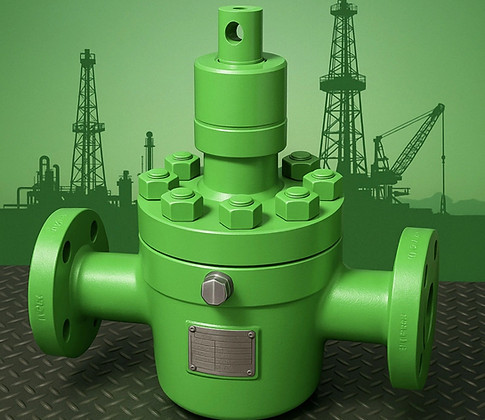

The DEMCO DM style gate valve meets the tough, 7500-psi working pressure demands of deep well drilling. The DEMCO 7500-psi gate valve comes to this market with proven technology from the industry leader. When the market demanded a 7500-psi drilling mud valve, the DEMCO 7500-psi gate valve was introduced to meet the challenge. This is fitting since the DEMCO gate valves (2000 to 5000 psi) continue to be the premium drilling mud valves of choice, as they have been for more than 30 years.

​

The DEMCO 7500-psi gate valve is available in sizes 2″ to 6″ (50 mm to 150 mm) with butt-weld end or flanged end connections. Engineered specifically for the high pressure requirements of deep well drilling, the DEMCO 7500-psi gate valve is chosen for the following drilling applications:

• ​Standpipe manifolds

• Pump manifold block valves

• High-pressure drilling-system block valves

• High-pressure frac service

​

​

Ram type BOP

Annual type BOP

Spherical Annual type BOP

Drilling Fluid manifold

Choke Manifold

Kill manifold

Accumulator

BOP Test stump & Pump

​

Integrated functions of fracturing, acidizing, and oil (gas) production, meeting conditions of high temperature, large discharge, high scouring and high corrosion.

Temp Class: L, P, R, S, T, U, V, X.

PR1, PR2

PSL3G

Material Code: 75K

Rate Pressure: 10K, 15K, 20K

​

Integrated Drilling & Completion Tubing-Casing head. The Shoulder is designed in cavity, to suspend surface and intermediate casing, tube hanger and pressure test plug.

PR1, PR2

Temp Class: L, P, R, S, T, U, V

PSL1 thru PSL-3G

Material Code: 36K, 45K, 60K, 75K

Material Class: AA, BB, CC, DD, EE, FF, HH

Gas production wellhead device is an important ground equipment to control the production of gas Wells, and is a necessary permanent device after drilling every well. The product index covers the main parameters of API 6A, which can meet the requirements of different working conditions of onshore natural gas fields, especially the environment with high pressure and sulfur content.

Pressure Level: 3K, 5K, 10K, 15K, and 20K

Temp Class: L, P, R, S, T, U, V,X

PR1, PR2

PSL-1 thru PSL-4

Size 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16".

​

​
